Fuel Trim is a pivotal part of the OBD-II system. OBD-II scan tool helps check and adjust the amount of air and fuel in the engine to make sure that it burns properly. The fuel trim system makes up for changes in how the engine is running and looks for problems with the fuel system and/or engine sensors. In this article, we’ll talk about what Fuel Trim is for, its parts, the different types, how to interpret data, diagnostic trouble codes (DTCs), and how important it is to keep it well-maintained.
Purpose of Fuel Trim
The main goal of Fuel Trim is to keep the air-to-fuel ratio in the engine at a good level for optimal combustion. The Fuel Trim system works by changing the width of the fuel injector pulse to get the right amount of air and fuel. This helps stop people from using too much fuel and making too many harmful emissions.
Another important thing that Fuel Trim does is adjust for changes in how the engine is running. For example, when the load on the engine changes, the Fuel Trim system changes the ratio of air to fuel to keep the engine running smoothly. This helps the car run better and use less gas.
Last but not least, the Fuel Trim system can also find problems with the fuel system or engine sensors. If the Fuel Trim system notices that the air-to-fuel ratio isn’t in the right range, it will set off a DTC that can help figure out what’s actually wrong.
Fuel Trim System Components
The Fuel Trim system consists of several components, including Oxygen sensors, Mass Air Flow sensors, Manifold Absolute Pressure sensors, and the engine control module. These components are integral parts of the Fuel Trim system.
- Oxygen (O2) Sensors: These sensors are in the exhaust system and measure how much oxygen is in the exhaust gases. The Fuel Trim system would use this information to change the amount of air and fuel in the engine.
- Mass Air Flow (MAF) Sensor: The MAF sensor measures how much air goes into the engine and tells the Engine Control Module(ECM). This information is used by the ECM to change the pulse width of the fuel injectors.
- Manifold Absolute Pressure (MAP) Sensor: The MAP sensor measures the pressure within the intake manifold and sends that information to the ECM. This information is used by the ECM to change the pulse width of the fuel injectors.
- Engine Control Module (ECM): The ECM is the system’s brainwave. The ECM utilizes the information that O2 sensors, MAF sensors, MAP sensors, and other sensors send to change the fuel injector pulse width to adjust the air-fuel ratio.
- Fuel Injector: The fuel injector is the component of the engine that is accountable for injecting the appropriate quantity of gasoline into the engine based on the data supplied by the Engine Control Module (ECM).
- Throttle Body: The throttle body is responsible for regulating the amount of air that enters the engine. When adjusting the air-to-fuel ratio, the ECM refers to the information received from the throttle body.
Types of Fuel Trim
Fuel Trim comes in two forms: Short-term Fuel Trim (STFT) and Trim Long-Term Fuel (LTFT) which differ in the scope of time and objectives. This is how the ECU monitors how much fuel is going into the engine.
Short-term Fuel Trim (STFT)
STFT is a short-term change/adjustment/compensation to the width of the fuel injector pulse that is made to account for changes in how the engine is running. STFT is measured in real time and is usually used to change the ratio of air to fuel when the car speeds up or slows down.
Trim Long-Term Fuel (LTFT)
LTFT is a long-term change that is made to the width of the fuel injector pulse to account for changes in how the engine is running over time. LTFT is measured over time and is usually used to change the air-to-fuel ratio when driving in a steady state.
Fuel Trim Data Interpretation
Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT) values are given in terms of a percentage. (LTFT). Depending on the make and model of the car, the optimal numbers for fuel trim may be slightly different, but in general, the STFT should be around +/-5% and the LTFT should be around +/-10%.

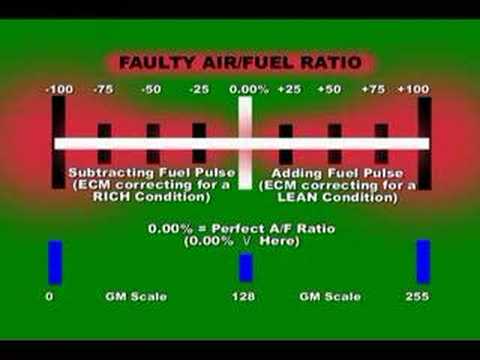

If the STFT or LTFT values are outside of these ideal ranges, it means that the fuel system or engine sensors need to be fixed. A positive fuel trim figure means the system is adding fuel to keep the right amount of air and fuel, while a negative value means the system is taking fuel away.
It’s vital to remember that figuring out what Fuel Trim data means is a difficult task that takes expertise and experience with engine diagnostics. Therefore, it is essential to see a trained mechanic or technician to analyze the Fuel Trim data and identify any faults with the engine or fuel system.
Fuel Trim Diagnostic Trouble Codes (DTCs)
Diagnostic Trouble Codes (DTCs) for the fuel trim system show that something is wrong with it. P0171 and P0174 are the most often seen Fuel Trim DTCs. These codes mean that the engine is running too lean, which indicates that the mixture of air and fuel has too much air and not enough fuel. This can make the engine run badly and even damage it if nothing is done.
P0172 is an often-seen Fuel Trim DTC. This code means that the engine is too rich, which implies that there is too much fuel in the air-to-fuel mixture and not enough air. This can make the engine run badly and cause damage if nothing is done about it.
Whenever a Fuel Trim DTC has been set, you need to find out what’s wrong and fix it. Most of the time, the problem is caused by a broken sensor or a problem with the fuel system. It’s important to fix the problem quickly to keep the engine from getting worse.
Additionally, there are also Fuel Trim DTCs that are unique to a certain manufacturer. Depending on the maker and model of the car, these codes may be different and may need special diagnostic equipment to find and fix.
Generally speaking, it’s highly recommended to diagnose and fix Fuel Trim DTCs to keep the engine healthy and running well. By keeping up with the maintenance of the Fuel Trim system, drivers and mechanics can make sure that the engine is running at its best and avoid having to pay for expensive repairs in the future.
Conclusion
Fuel Trim maintains the engine’s air-to-fuel ratio for efficient combustion. It detects fuel system and engine sensor issues and adjusts the fuel injector pulse width for the engine load. Oxygen, mass air flow, manifold absolute pressure, and engine control modules make up the Fuel Trim system. Interpreting Fuel Trim data is essential for diagnosing engine or fuel system faults. To avoid engine damage, you must fix fuel trim DTCs immediately.
