The On-Board Diagnostic (OBD-II) system in modern cars is a complicated system that gives real-time information about how different parts of the car are working. Mode 6 is one of the things that the OBD-II system can do. Mode 6 gives detailed information about how certain parts of the system work. Let’s explore further the importance of Mode 6 in the OBD-II system and how it works.
Purpose of Mode 6
Mode 6 is a diagnostic mode that gives detailed information about how certain parts of the system are working. Mode 6 is meant to help find problems that come and go or are hard to find. This mode gives the driver or a mechanic real-time information which can be utilized to figure out what’s wrong with the car.
Mode 6 is different from the other OBD-II modes because it doesn’t give standardized diagnostic trouble codes (DTCs) like the other modes do. Instead, Mode 6 gives detailed information about how certain parts of the system work. This information can be used to find problems that other modes might not be able to find.
Component Requirements for OBD-II Mode 6
The parts of Mode 6 are the same as those in other OBD-II modes. The Engine Control Module (ECM), the OBD-II Connector, and the OBD-II Scan Tool are integral components of the system.
- The ECM: This is the central processing unit of the car’s engine and is in charge of keeping track of how the different parts/modules/components work.
- OBD-II Connector: The OBD-II Scan Tool is connected to the car through the OBD-II Connector which has 16 pins so that it can access the OBD-II system. Vehicles manufactured after the year 1996 use OBD-II protocols so they must have this OBD-II connector.
- OBD-II Scan tool: An OBD-II scan tool is a diagnostic tool that plugs into an OBD-II connector to connect to your car via a wired connection, or wireless connection(WiFi or Bluetooth). This lets you scan every diagnostic trouble code that your car’s computer gives you.
However, the 16 pins connector suggests the Bluedrive OBD2 connector is a 16-pin diagnostic port used for vehicle diagnostics and connects to the Bluedrive app for real-time data and analysis.
Mode 6 Parameters
Mode 6 gives detailed information about how certain parts of the system work. Different parameters are given by Mode 6 than by other modes. Common Mode 6 parameters typically cover misfire counts, fuel system status, catalyst efficiency, and other relevant non-code information about how certain system parts are currently performing.
Mode 6 mostly reports manufacturer-specific parameters. Each vehicle manufacturer has its own set of parameters, and some of them may give information about specific system parts that other vehicles don’t report. In fact, the auto manufacturer makes these parameters model-specific, for example, GM has a long list of model-specific parameters.

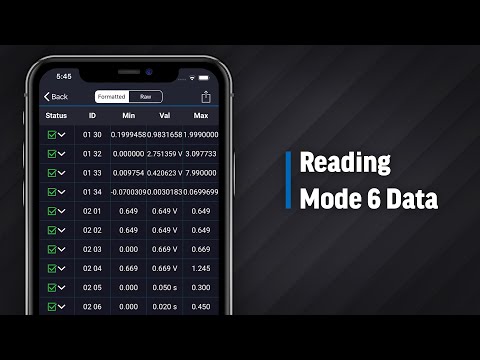

Mode 6 Data Interpretation
Mode 6 data can be hard to understand because it is not standardized like data from other modes. Mode 6 gives information that is unique to each car maker and may require specialized knowledge to understand.
To figure out what Mode 6 data means, you need to know a lot about the parts of the system that are being watched. This information can be learned through auto training or by looking at the technical manuals that come with the vehicle.
Data from Mode 6 can be used to figure out what’s wrong with the engine or vehicle. The data can show how well certain parts of the system are working and point out problems that might not be found by generic diagnostics.
Why Aren’t There Generic DTC Codes in the OBD-II Mode 6
Mode 6 is different from the other modes because it doesn’t give standardized DTCs. But data from Mode 6 can be used to find problems that could cause DTCs to be set in other modes.
It’s impossible to technically explain them but for instance, if Mode 6 data shows that the efficiency of the catalyst is lower than what the manufacturer recommends, it could mean that the catalytic converter is having failed or not working right. Because of this problem, DTCs may be set in other modes, which means that there is a problem with the catalytic converter.
Importance of Maintaining Mode 6
Using the Mode-6-related system is important for your car’s engine and emission control systems to work well. These are some fundamental advantages of using mode 6 for your vehicle:
- Detecting Problems Earlier: By keeping an eye on and analyzing data generated by Mode 6, you can find potential problems before they get worse. This can save you time and money by keeping you from having to fix things.
- Enhanced Mileage: If you keep an eye on the Mode 6 data, you can find any problems with the fuel system and fix them to improve fuel efficiency.
- Enhanced Engine Performance: If you keep the Mode 6 system well-maintained and keep an eye on the data, you can keep the engine running at its best, which can help your car run better and last longer.
- Passing SMOG test: The Mode 6 system checks the performance of the catalytic converter and other emission control parts to ensure efficiency and make sure your car meets emission regulations.
Disadvantages of not using Mode 6
On the other hand, if you’re not using the Mode 6 system, it can lead to a number of problems, such as:
- Poor Mileage: If the Mode 6 system isn’t working right, it can lead to less efficient use of fuel, which will cost you more money in fuel costs.
- Poor engine performance: If the Mode 6 system isn’t working right, your engine might not be working as well as it could. This can be frustrating and could be dangerous in the long run.
- Failing emissions tests: If you don’t keep up with the Mode 6 system’s maintenance, your car would likely fail emissions tests, which could lead to fines and other legal problems.
At this point, keeping the Mode 6 system in good shape is important for your car’s engine and emission control systems to work well. By keeping an eye on the Mode 6 data and solving any problems right away, you can make sure your car works well and save time and money in the long run. Don’t forget how important Mode 6 maintenance is, and make sure you check and analyze the data often to keep your car in good shape.
Mode 6 of the On-Board Diagnostic (OBD-II) system offers detailed information about how various vehicle systems work. It provides individual parameters rather than standardized diagnostic trouble codes (DTCs) to help uncover issues that other modes may miss. Mode 6 data takes expertise to comprehend and optimize automotive performance. Hence, maintaining the Mode 6 system helps the engine and pollution control systems perform efficiently, saving time and money while meeting emission requirements.
